Slipway Trailer SW50

  • description
  • brochure

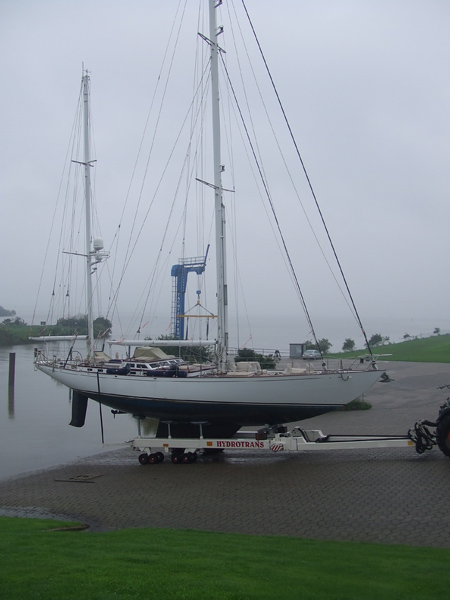

The Hydrotrans hydraulic boat trailer is designed to launch and recover boats on a slipway, transport the boats over land and park them in a storage or work area.

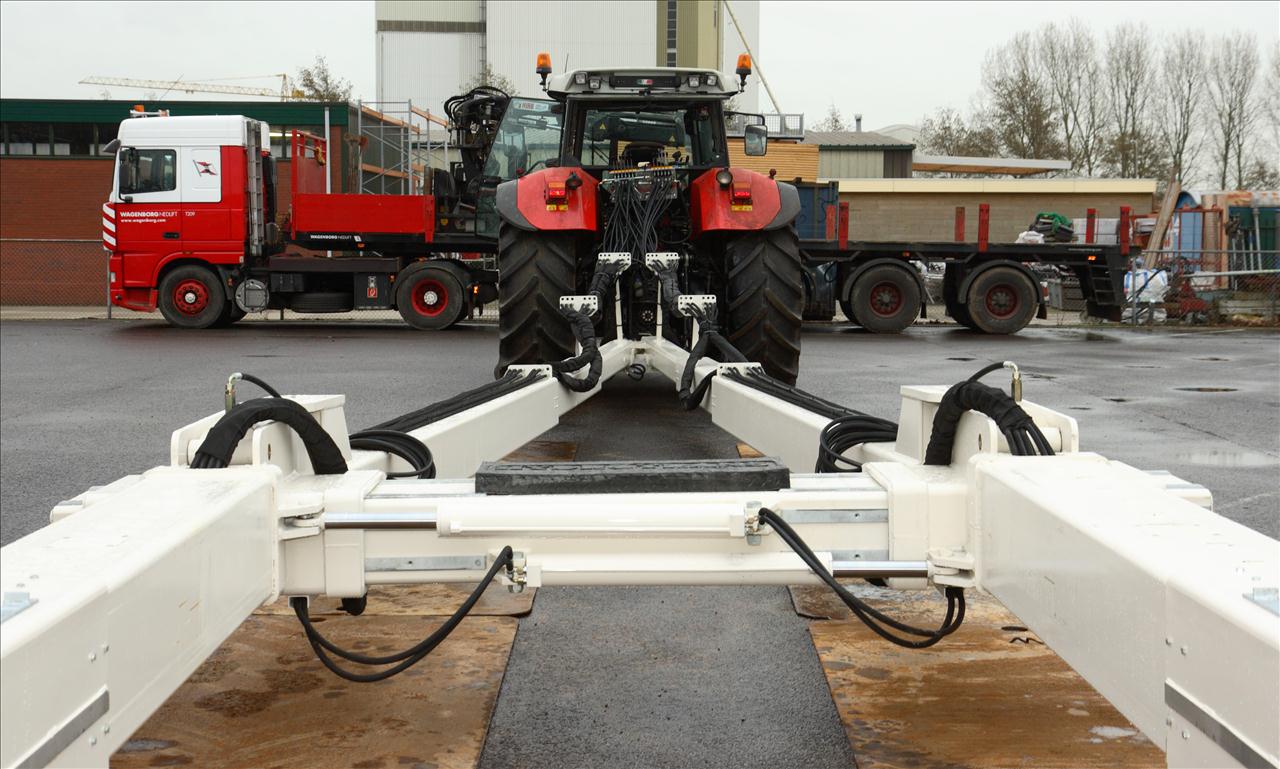

The Hydrotrans SW50 can be pulled by a reach truck or an agricultural tractor. It uses the hydraulic capacity of the tow vehicle for all the hydraulic functions.

The boat is lifted by 4 hydraulic pads with soft pads on them to avoid damaging the hull. The front of the boat is supported by the crossbeam with also a soft pad on it to avoid damage. For sailboats an adaptor is available.

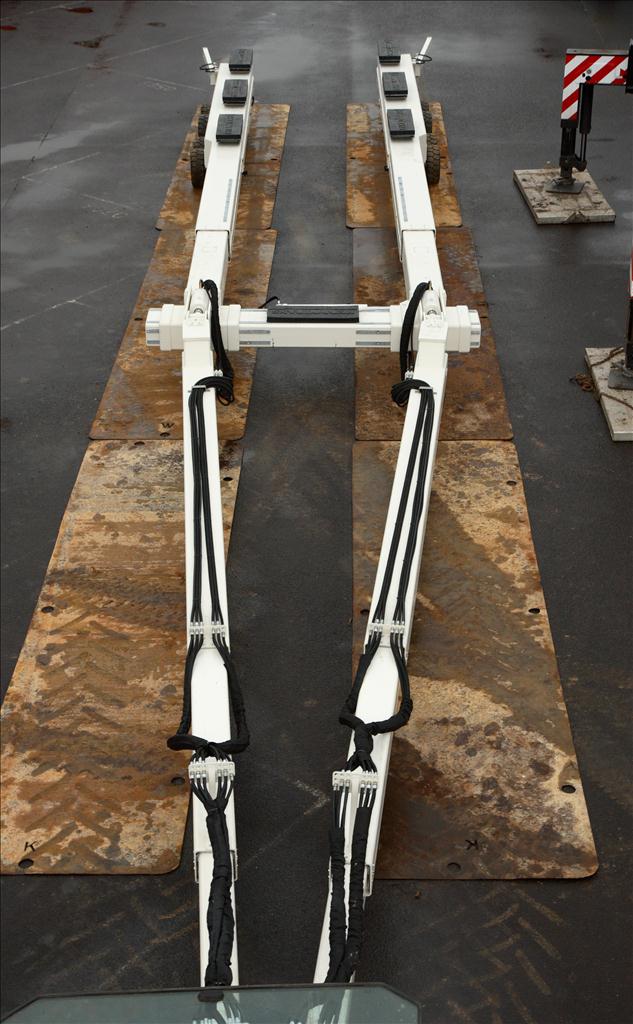

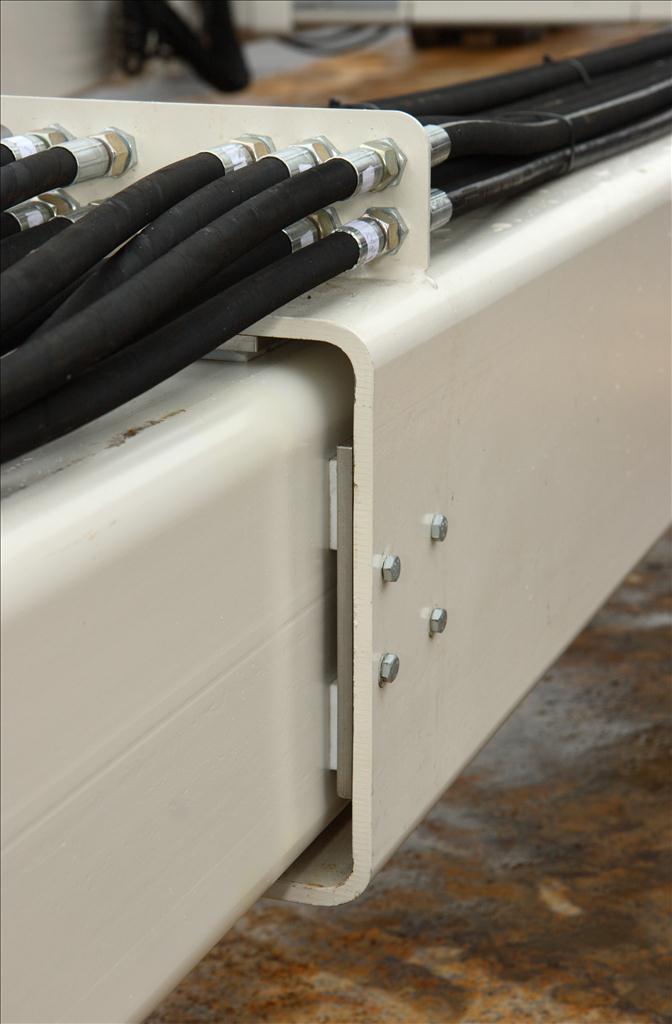

The width of the trailer frame and the height are hydraulic adjustable. The pads and drawbar are hydraulically adjustable.

The Hydrotrans SW50 is also suitable for transporting boats on T-cradle’s. The solid or pneumatic tires of the SW40 offer optimal security through any terrain capable of carrying the load.

The Hydrotrans SW50 is built according to CE-regulations and is tested at the factory before shipment.

All Hydrotrans equipment can be built to SAE specifications.

All Hydrotrans equipment carries a 2 year warranty.
