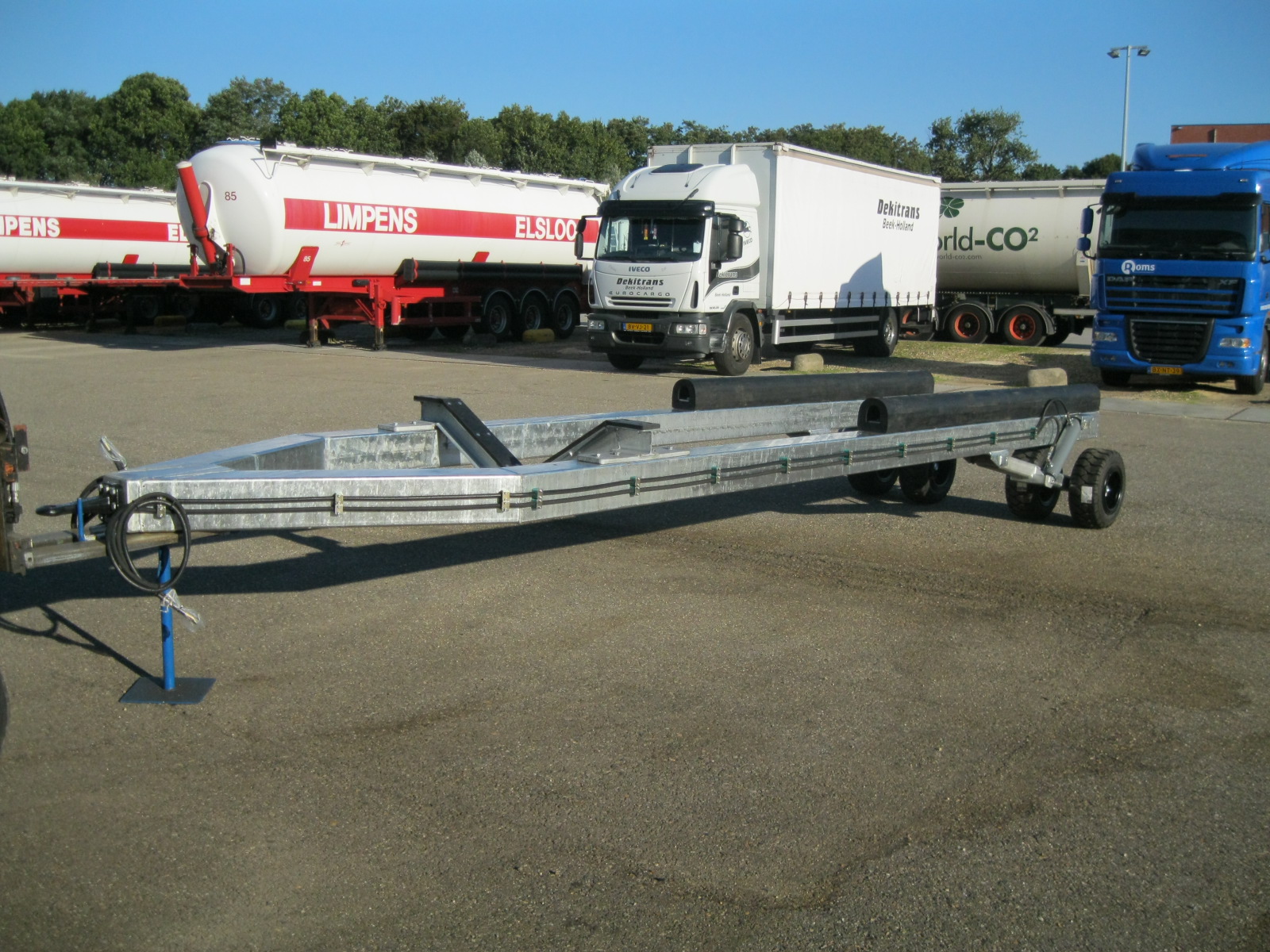

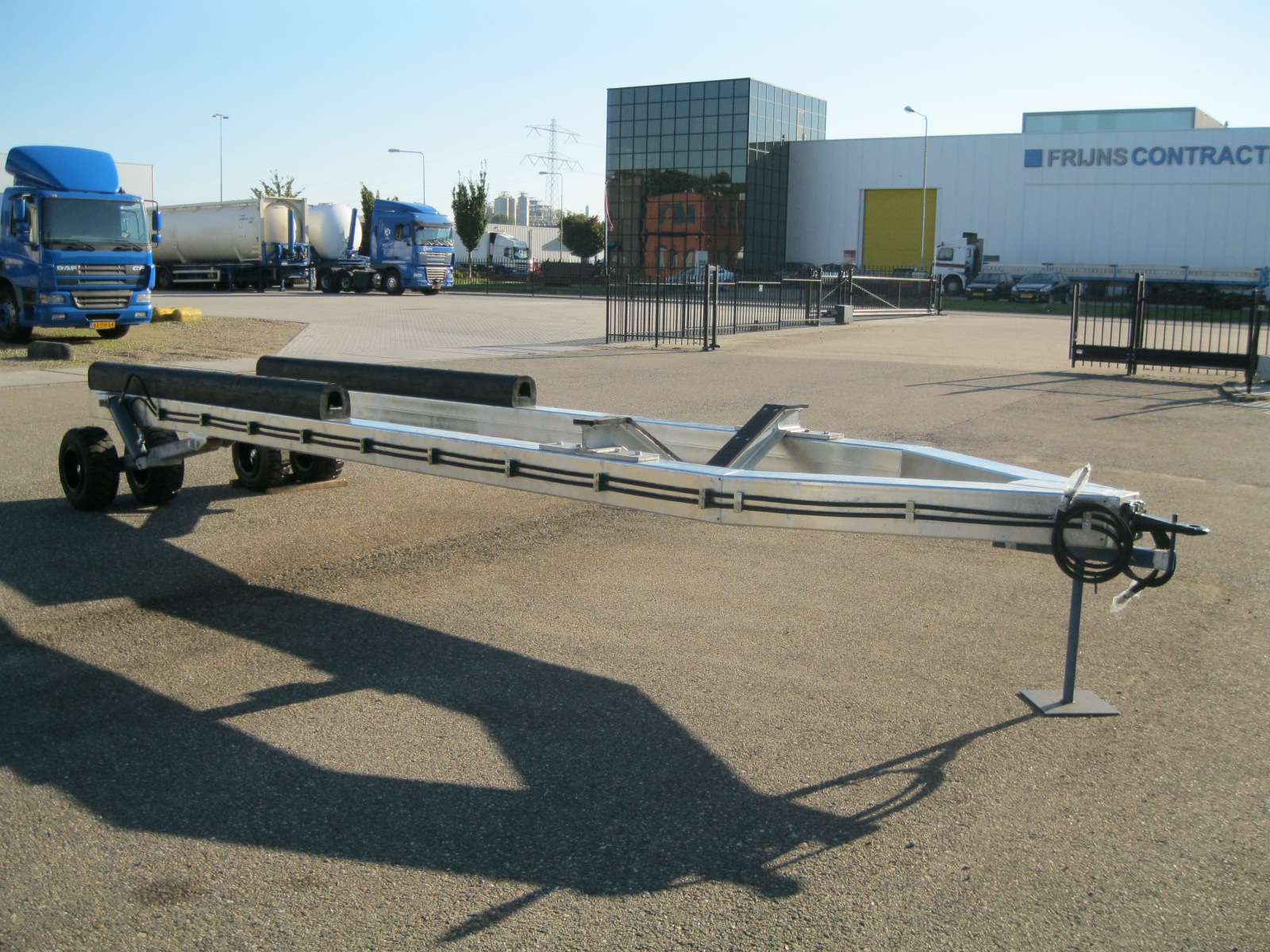

Slipway Trailer SW 5

The Hydrotrans hydraulic SW series boat trailer is designed to launch and recover boats on a slipway, transport the boats over land and park them in storage or work area. The Hydrotrans SW5 can be pulled by a forklift, or an agricultural tractor. It uses the hydraulic capacity of the tow vehicle for all the hydraulic functions. The boat and trailer are lifted by 2 hydraulic cylinders. The beams support the soft pads to avoid damaging the hull. The front of the boat can be supported by a crossbeam with also a soft pad as an option.

With solid or pneumatic tires the SW5 offers optimal security over any terrain capable of carrying the load.

The Hydrotrans SW5 is built according to CE-regulations and is tested at the factory before shipment.

All Hydrotrans equipment can be built to SAE specifications.

All Hydrotrans equipment carries a 2 year warranty.

Capacity - 5.000 kg

High Grade S355 Steel, Fully Galvanized

Frame, open U-designed frame with fixed width, and length of 6315 mm.

Height adjustment from 583 mm to 1283 mm

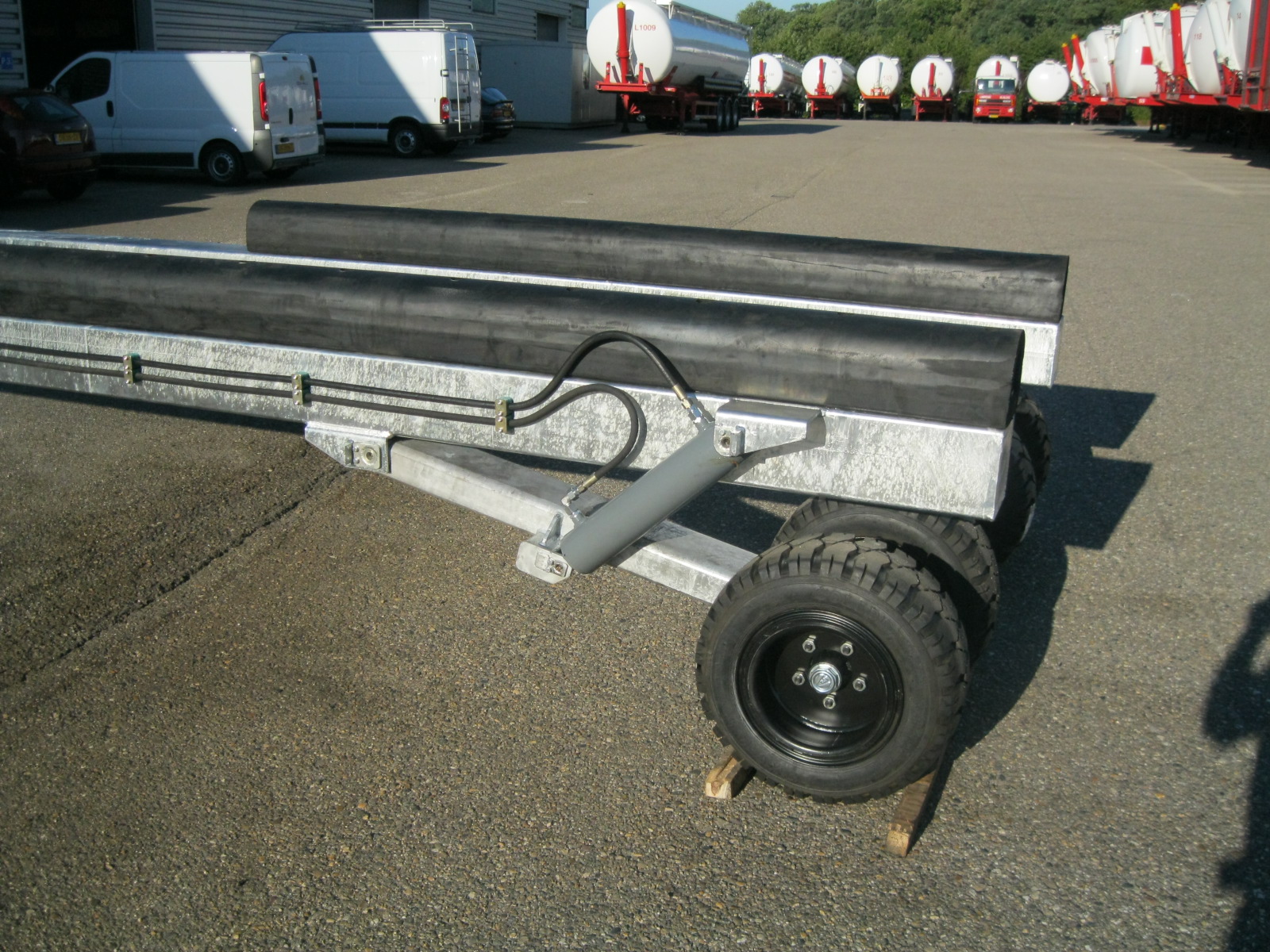

Wheels, 4 pneumatic or 4 solid tires.

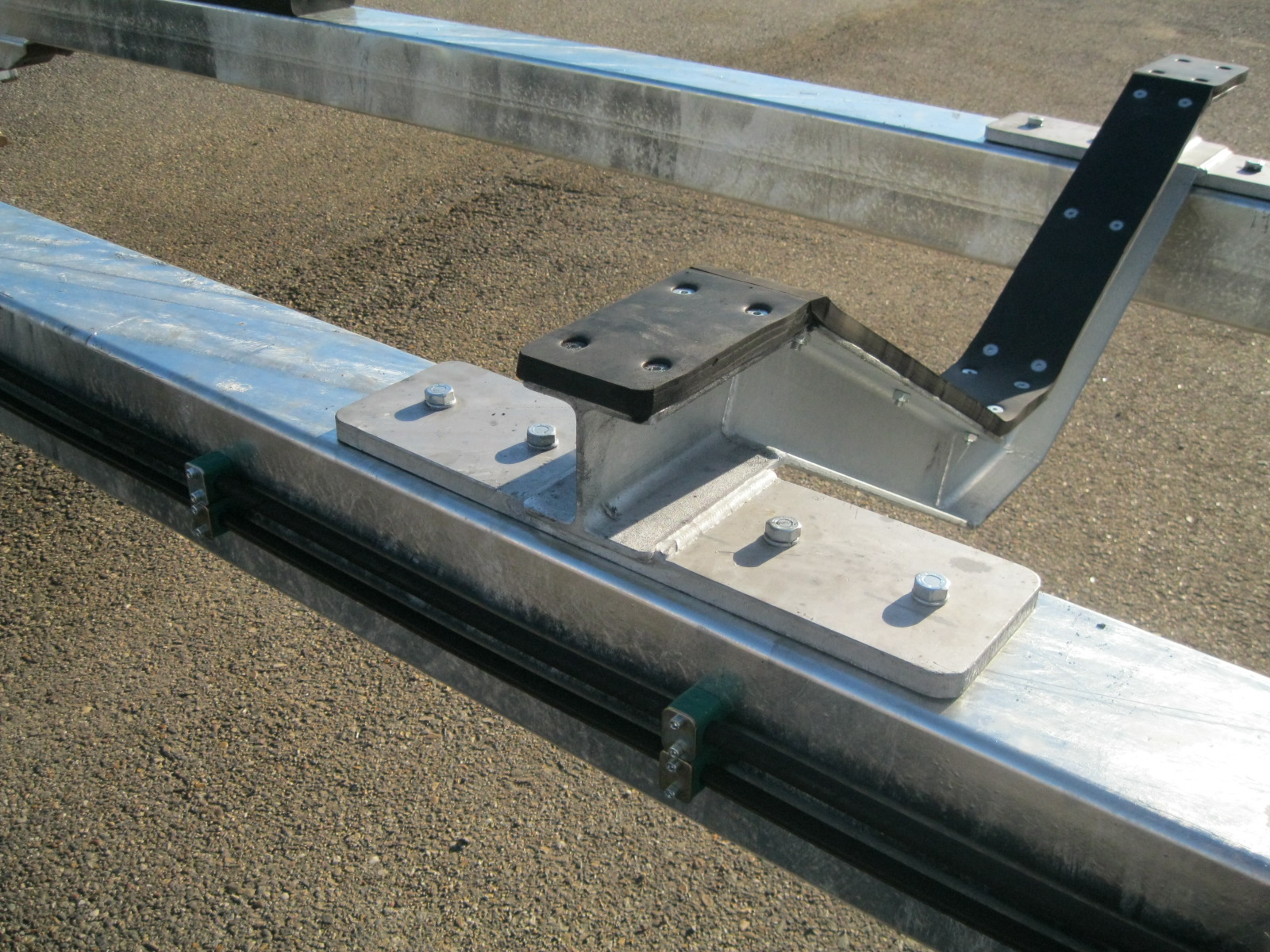

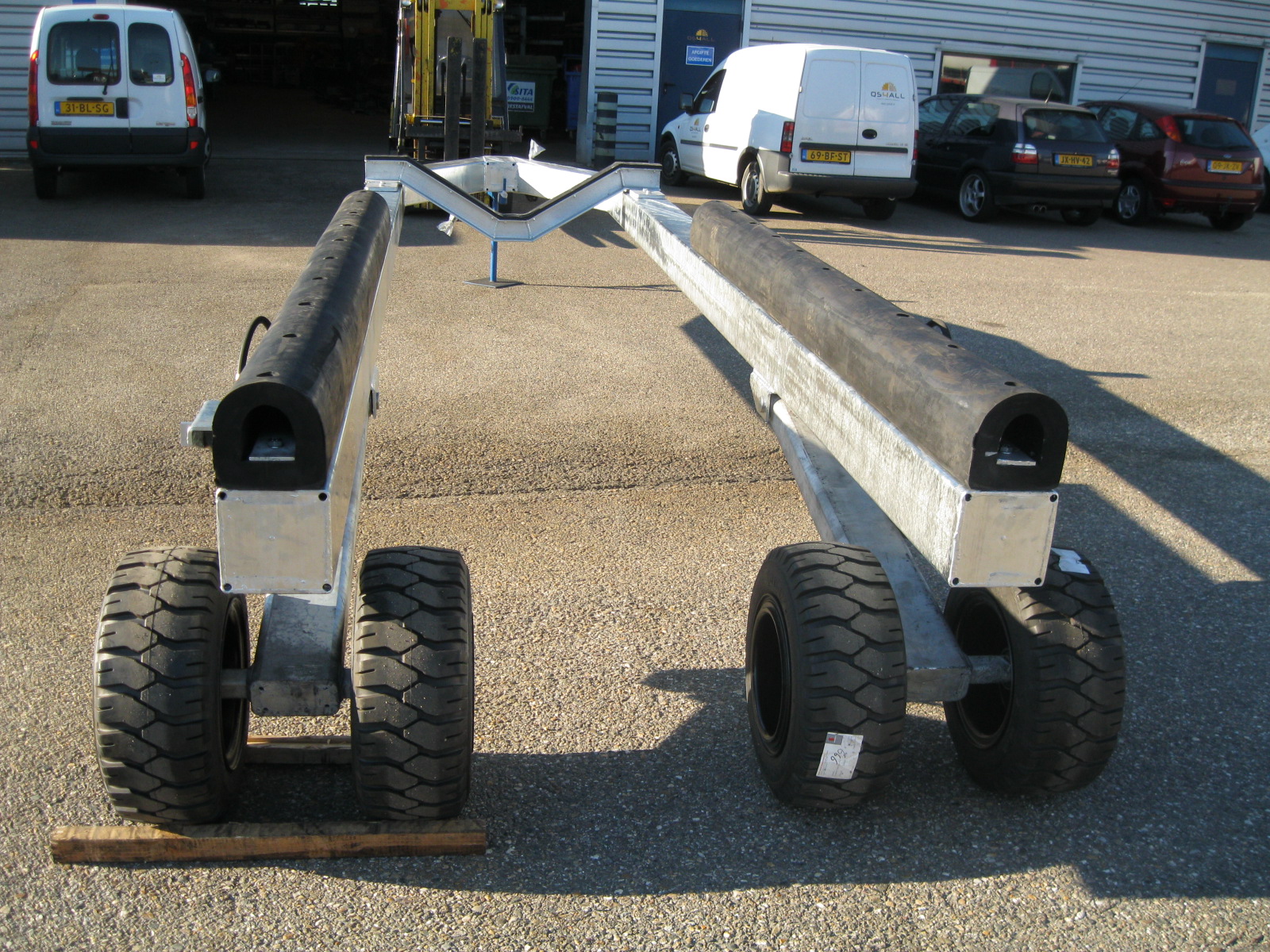

Pads, 2 polyurethane pads 2000 mm in length.

2 Hydraulic cylinders, high quality cylinders with safety valves built-in.

Height on pads - 583 mm.

Interior dimension of frame - 1250 mm.

Lifting height frame - 700 mm.

Download the brochure:
