Slipway Trailer SW 5

  • omschrijving
  • brochure

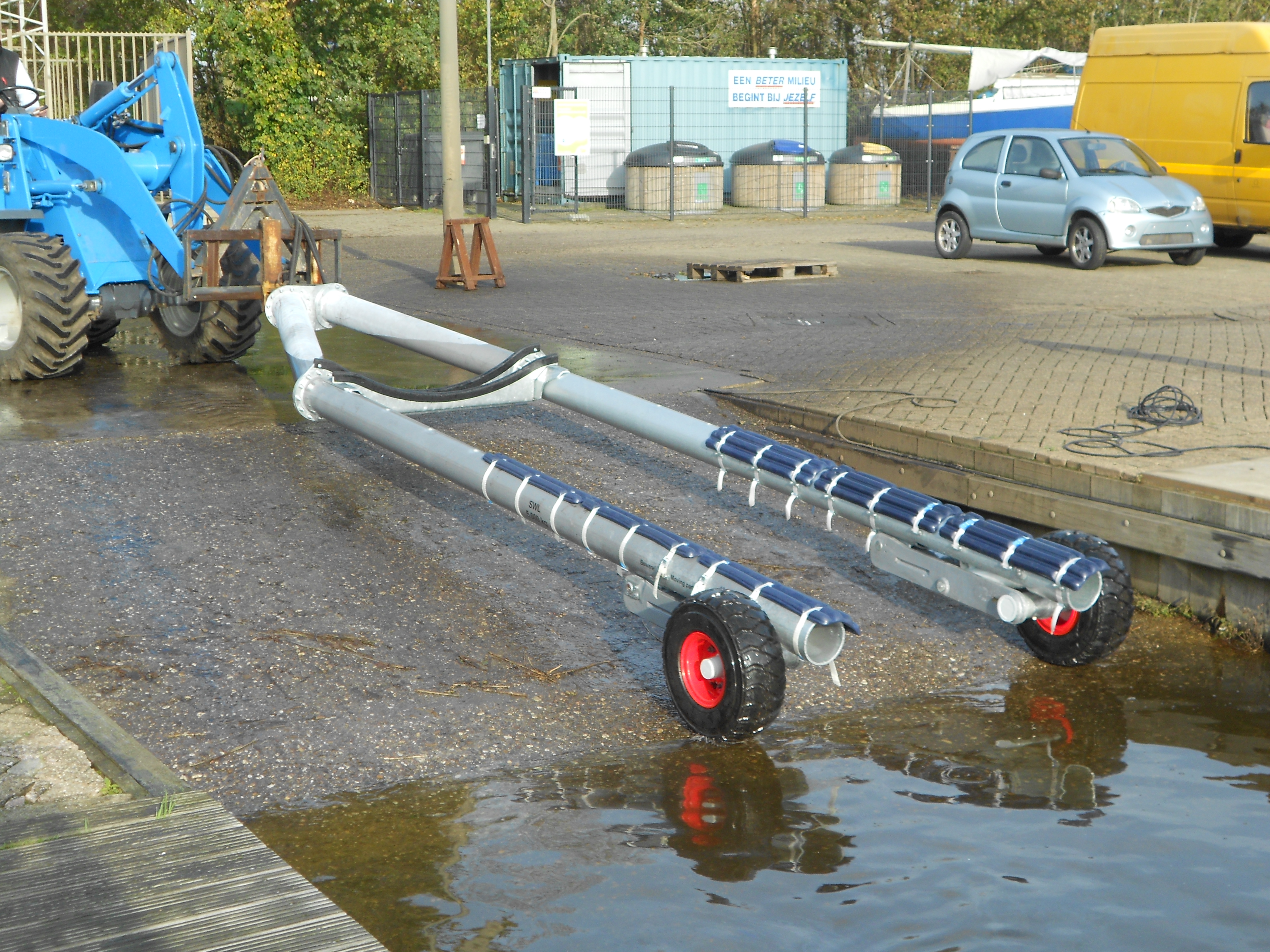

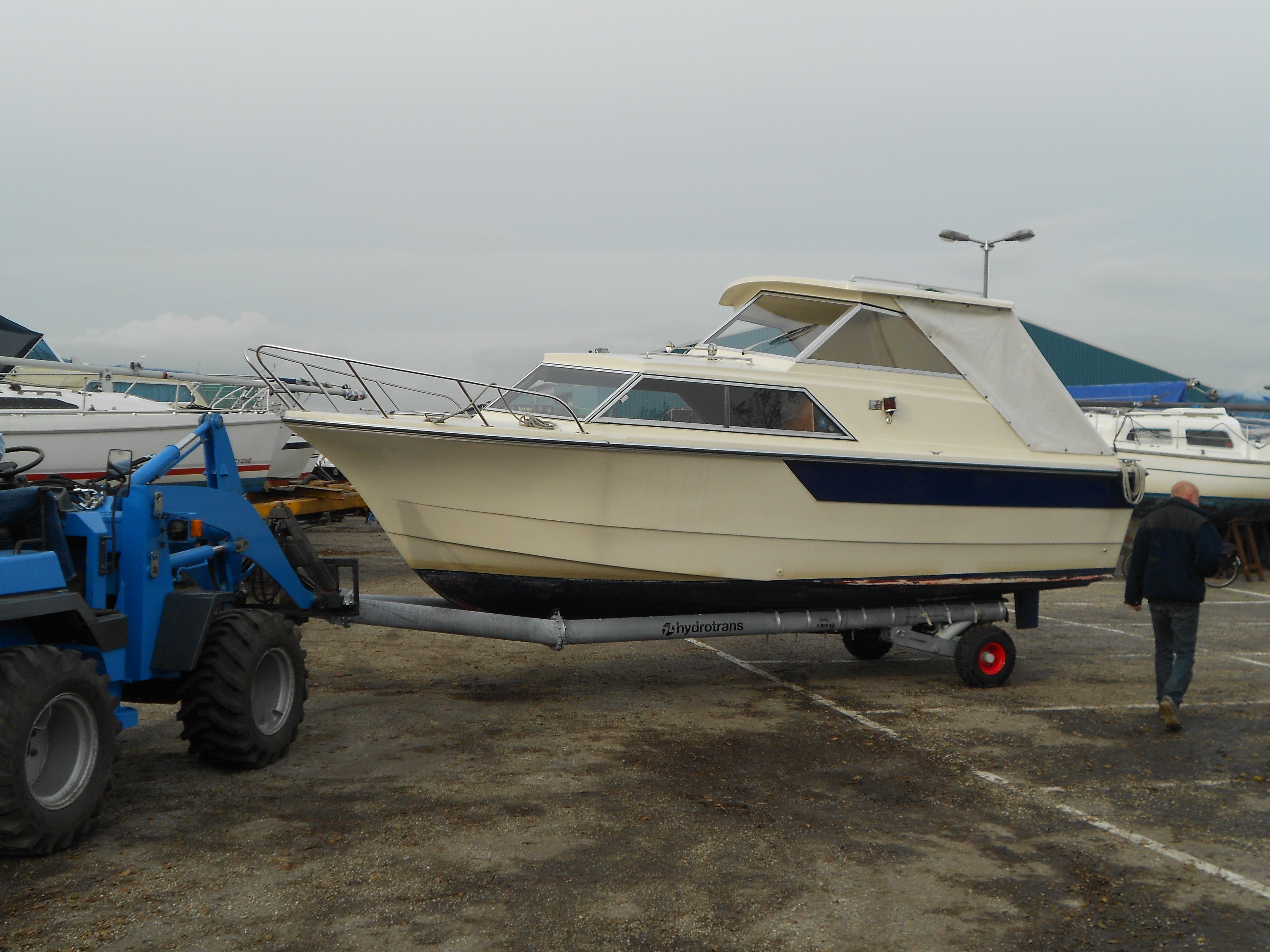

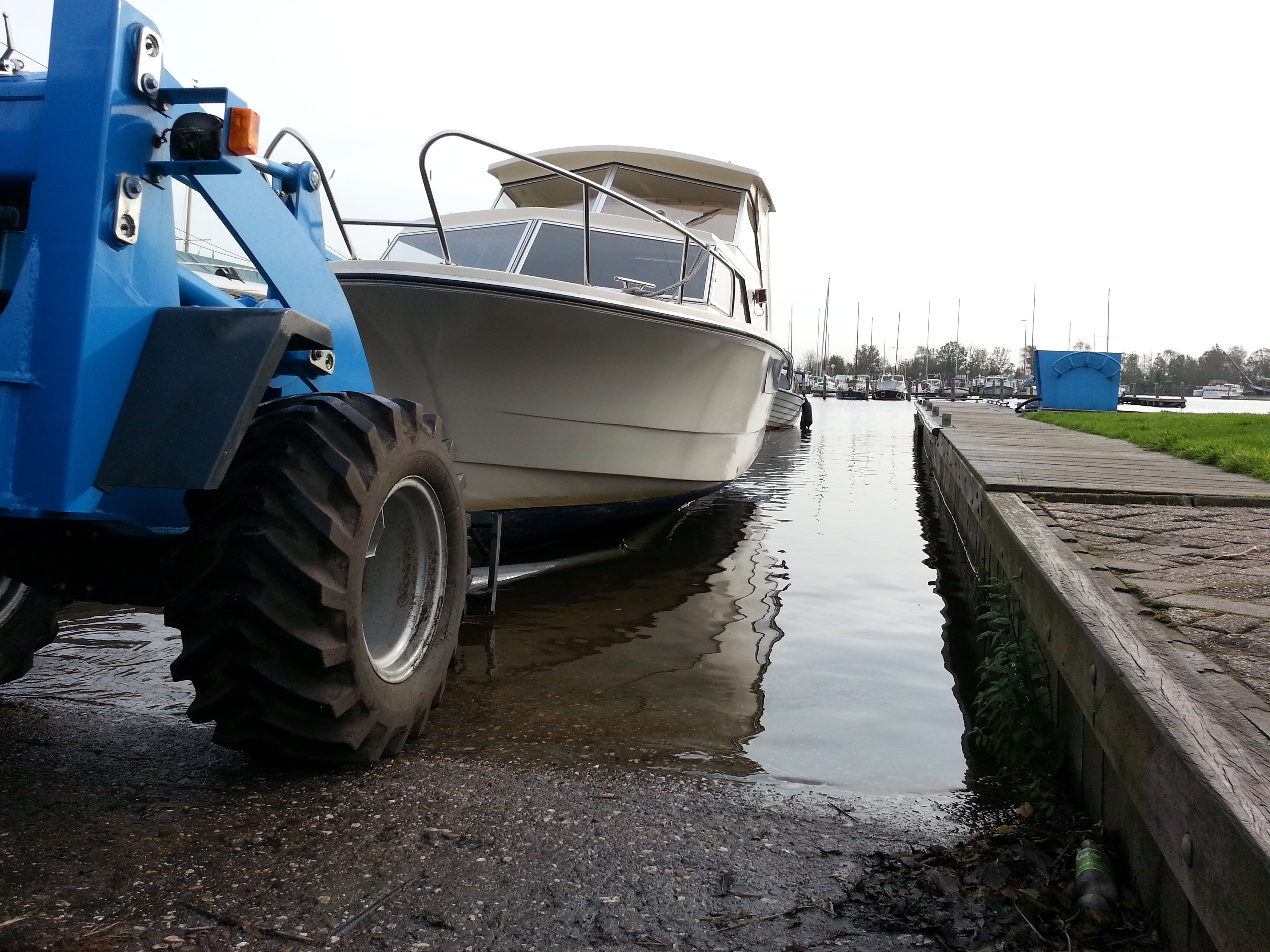

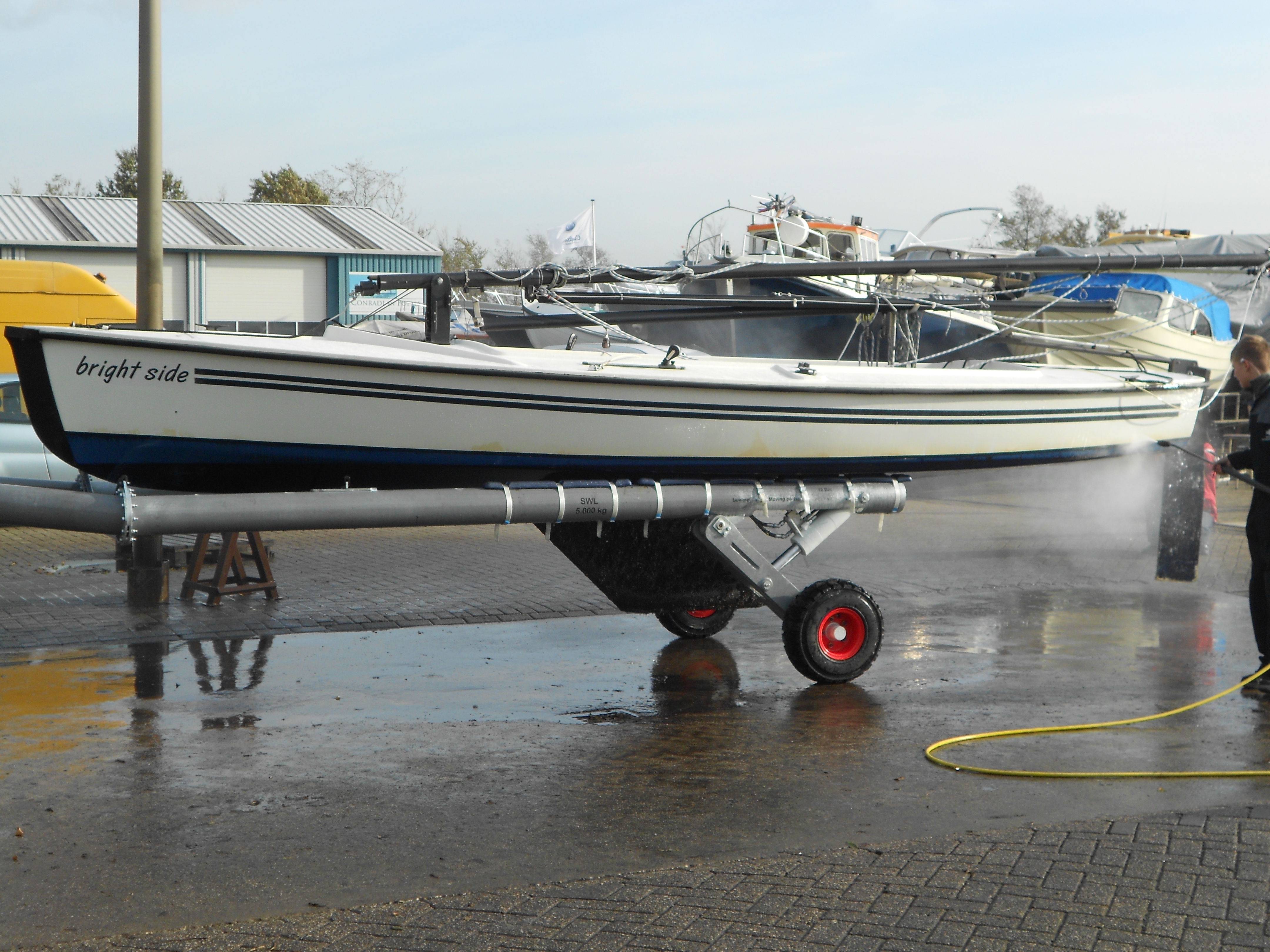

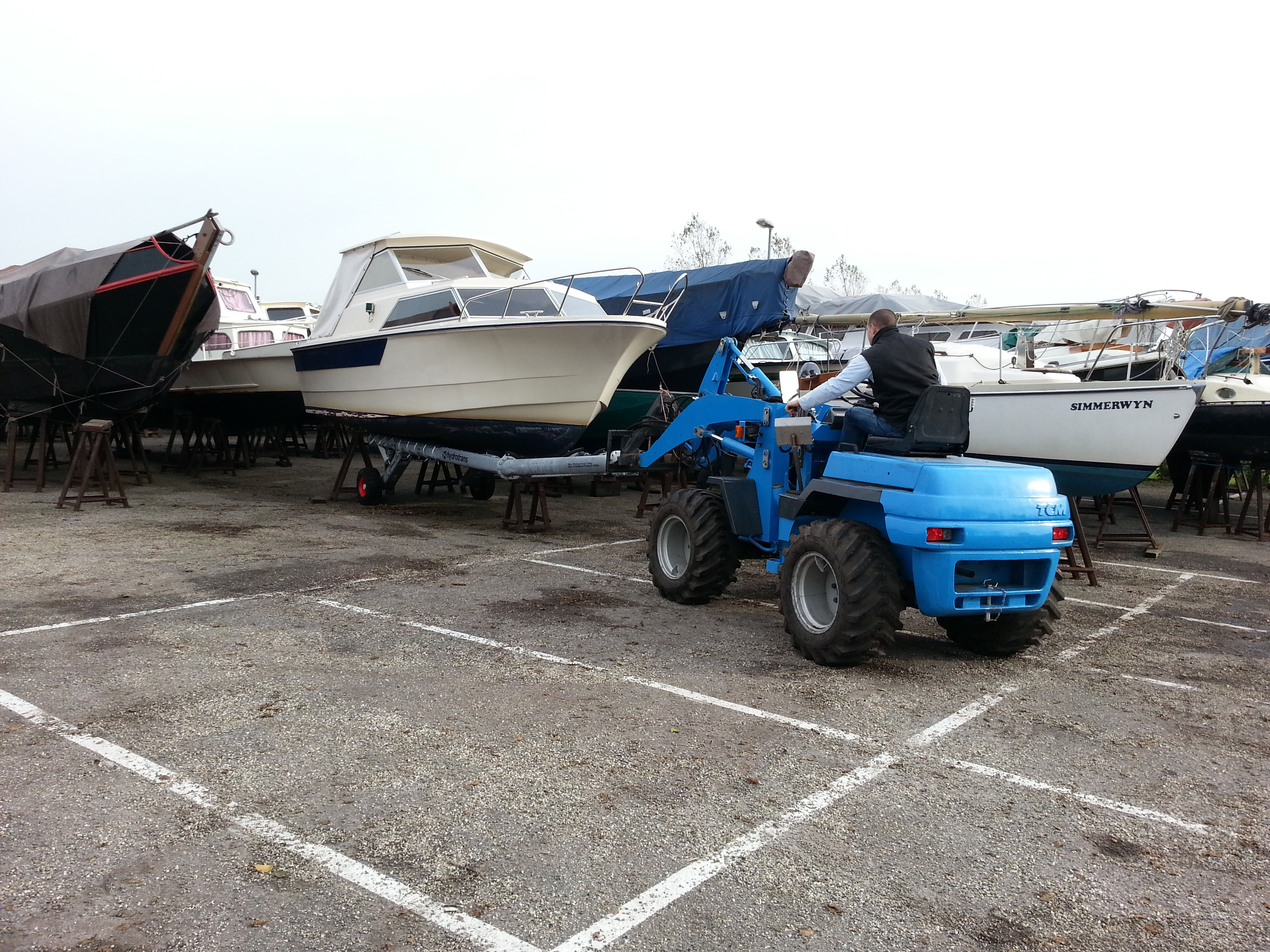

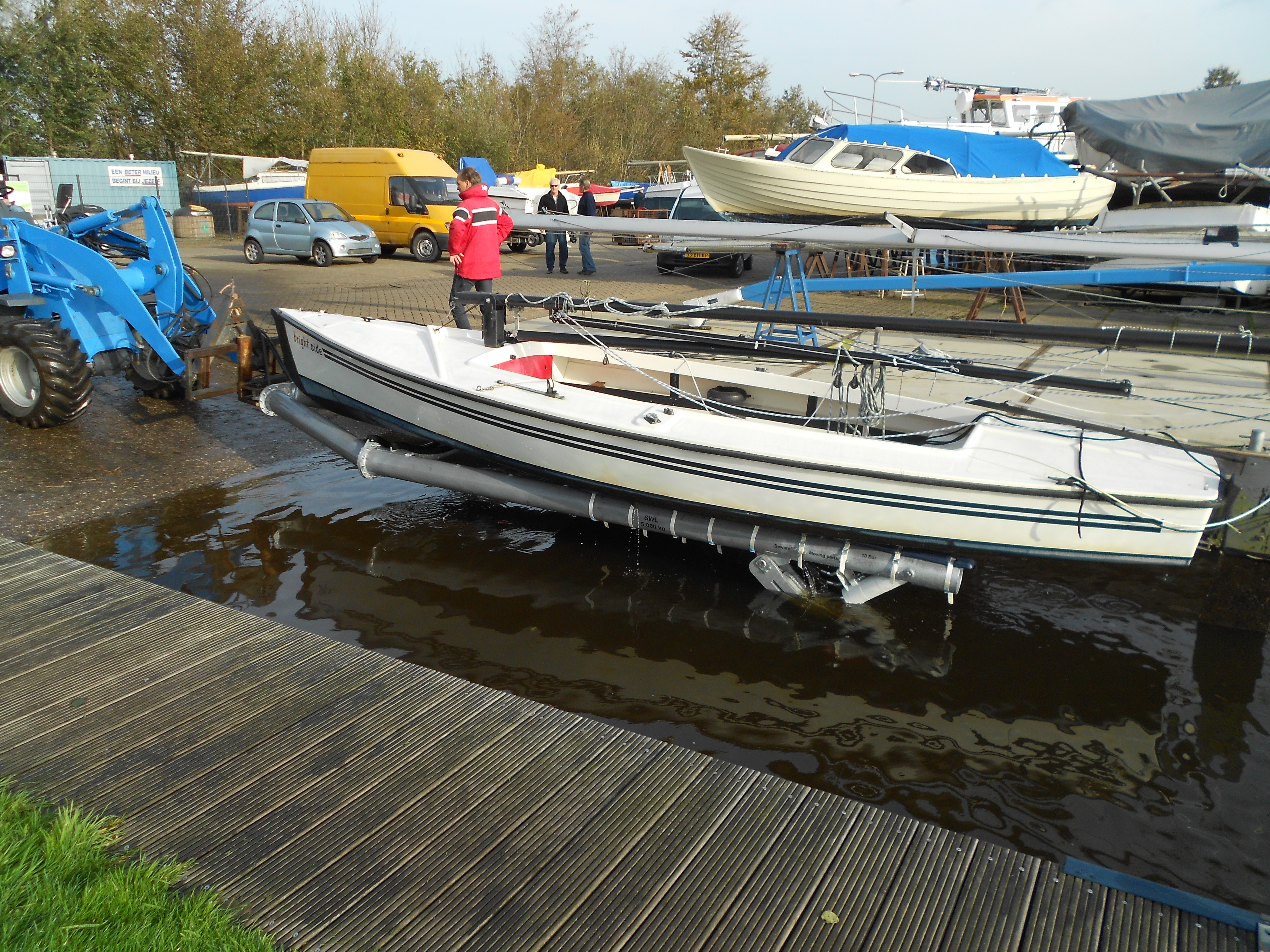

The Hydrotrans hydraulic SW series slipway trailer is designed to launch and recover boats on a slipway, transport the boats over land and park them in storage or work area. The Hydrotrans SW 5 can be pulled by a forklift, or an agricultural tractor. It uses the hydraulic capacity of the tow vehicle for all the hydraulic functions. The boat and trailer are lifted by 2 hydraulic cylinders. The beams support the soft pads to avoid damaging the hull. The front of the boat can be supported by a crossbeam with also a soft pad as an option.

With solid or pneumatic tires the SW5 offers optimal security over any terrain capable of carrying the load.

The Hydrotrans SW5 is built according to CE-regulations and is tested at the factory before shipment.

Technical specifications
Capacity - 5.000 kg
High Grade S355 Steel
Frame, open U-designed frame with fixed width and fully galvanized
Wheels, 4 pneumatic or 4 solid tires.
Pads, 2 polyurethane pads 3000 mm in length.
2 Hydraulic cylinders, high quality cylinders with safety valves built-in.


See video
